Description

Technical drawing

Model

Weight Load

Application

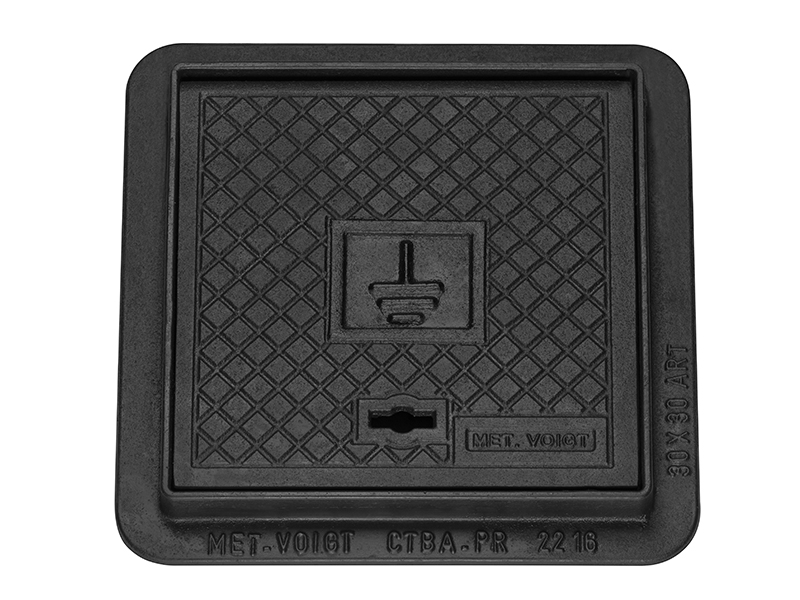

Manhole Cover
• 300x300mm
• ART CL - B 125

Earth Grounding

Approx. 12,5t

Grounding Boxes and others

Manhole Cover
• 300x300mm
• ART CL - B 125

Flat

Approx. 12,5t

Junction Boxes and others

Manhole Cover T-12
• 150mm
• ART CL - 50

Sanepar

Approx. 5t

Block Valves

Manhole Cover
• 400mm
• ART CL - B 125
• ART CL - D 400

Casan
Samae
Emasa
Custom

B 125 Approx. 12,5t
D 400 Approx. 40t

Water & Wastewater Manhole and Others

Manhole Cover
• 600mm
• ART CL - B 125
• ART CL - D 400

Flat
Wastewater
Electric
Rainwater
Custom

B 125 Approx. 12,5t
D 400 Approx. 40t

Water & Wastewater Manhole and Others

Manhole Cover
• 800mm
• ART CL - D 400

Flat
Casan
Wastewater
Electric
Rainwater
Custom

Approx. 40t

Water & Wastewater Manhole and Others

Manhole Cover
• 600mm
• ART CL - D 400

Flat
Copel
Casan
Wastewater
Rainwater
Custom

Approx. 40t

Water & Wastewater Manhole and Others

Manhole Cover R-3
• 700mm
• ART CL - D 400

Flat
Vivo
Tim
Claro
Intelig
Telecom
Custom

Approx. 40t

Telecom and Others

Manhole Cover THD-1
• 600X400mm
Manhole Cover THD-2
• 800X600mm
Manhole Cover THD-3
• 430X220mm

Sanepar

Approx. 5t

Water meter

Manhole Cover R-1
• 600x400mm
• ART CL - B 125

Tim
Vivo
Claro
Intelig
Telecom
Custom

Approx. 12,5t

Telecom and Others

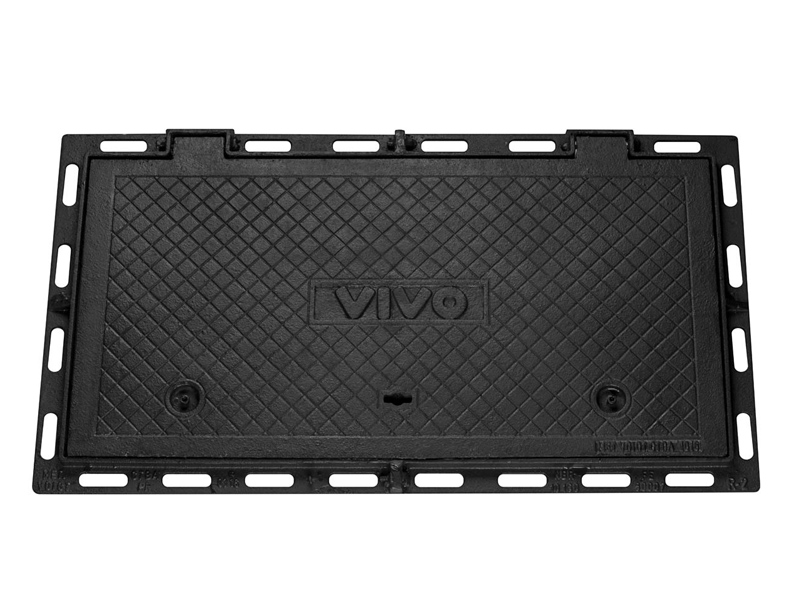

Manhole Cover R-2
• 1100x550mm
• ART CL - B 125

Tim
Vivo
Claro
Intelig
Telecom
Custom

Approx. 12,5t

Telecom and Others

Manhole Cover R-5
• 1300x900mm
• Bi ART CL - B 125

Copel
Intelig
Power
Others
Custom

Approx. 12,5t

Power
Telecom and Others
